Executive Summary & Scope

Comprehensive chemical engineering guide for safe scale-up of pyrophoric organolithium (n-BuLi, s-BuLi, t-BuLi) and Grignard reagents in API manufacturing: reaction calorimetry, induction kinetics, cryogenic heat transfer sizing, and 4-tier quench protocols.

Peer-Reviewed & PE Verified

ASME VIII • NFPA 68/69 • TEMA • ISO 9001 Alignment

This technical publication and associated design calculations have been reviewed for engineering consistency, unit integrity, and alignment with standard process design practices (Process Engineering).

# Safe Scale-Up of Pyrophoric Organolithium & Grignard Reagents in API Manufacturing

# Executive Summary & Chemical Process Safety Context

Organometallic reagents—specifically organolithium compounds (nn-butyllithium, secsec-butyllithium, terttert-butyllithium, methyllithium, phenyllithium) and Grignard reagents (organomagnesium halides, R-MgX\text{R-MgX})—are indispensable synthetic tools in commercial Active Pharmaceutical Ingredient (API) manufacturing. They drive essential carbon–carbon bond formations, stereoselective alkylations, low-temperature Directed ortho-Metalations (DoM), and halogen-metal exchange reactions that cannot be achieved via classical nucleophilic substitution pathways.

However, these reagents exhibit some of the most unforgiving reactive chemistry hazards in the chemical industry: extreme pyrophoricity upon atmospheric contact, violent water reactivity with simultaneous flammable alkane gas evolution, unpredictable induction periods in Grignard initiation leading to runaway autocatalytic thermal explosions, and severe cryogenic heat transfer constraints during industrial semi-batch additions.

+--------------------------------------------------------------------------------------------------+
|                     ORGANOMETALLIC PROCESS HAZARDS IN API SCALE-UP                                |
+--------------------------------------------------------------------------------------------------+
|  1. ATMOSPHERIC PYROPHORICITY  ==> Instantaneous flash ignition upon ambient air contact (<0.5 s)|
|  2. INDUCTION TRAP (GRIGNARDS) ==> MgO oxide passivation causes reagent accumulation (Y_acc -> 1)|
|                                ==> Autocatalytic initiation triggers massive thermal explosion   |
|  3. CRYOGENIC HEAT TRANSFER    ==> Reactor U-values drop 60-70% at -70°C to -40°C               |
|                                ==> Dosing rate must be strictly governed by U * A * ΔT_jacket    |
|  4. OFF-GAS FLAMMABILITY       ==> Stoichiometric alkane release (butane, methane, ethane)       |
|                                ==> Continuous N2 dilution sweep required to maintain < 25% LEL   |
|  5. WORKUP & QUENCH SHOCK      ==> Direct water addition causes vapor explosions & LiOH crusting |
|                                ==> Requires strict 4-Tier Quenching Hierarchy                    |
+--------------------------------------------------------------------------------------------------+

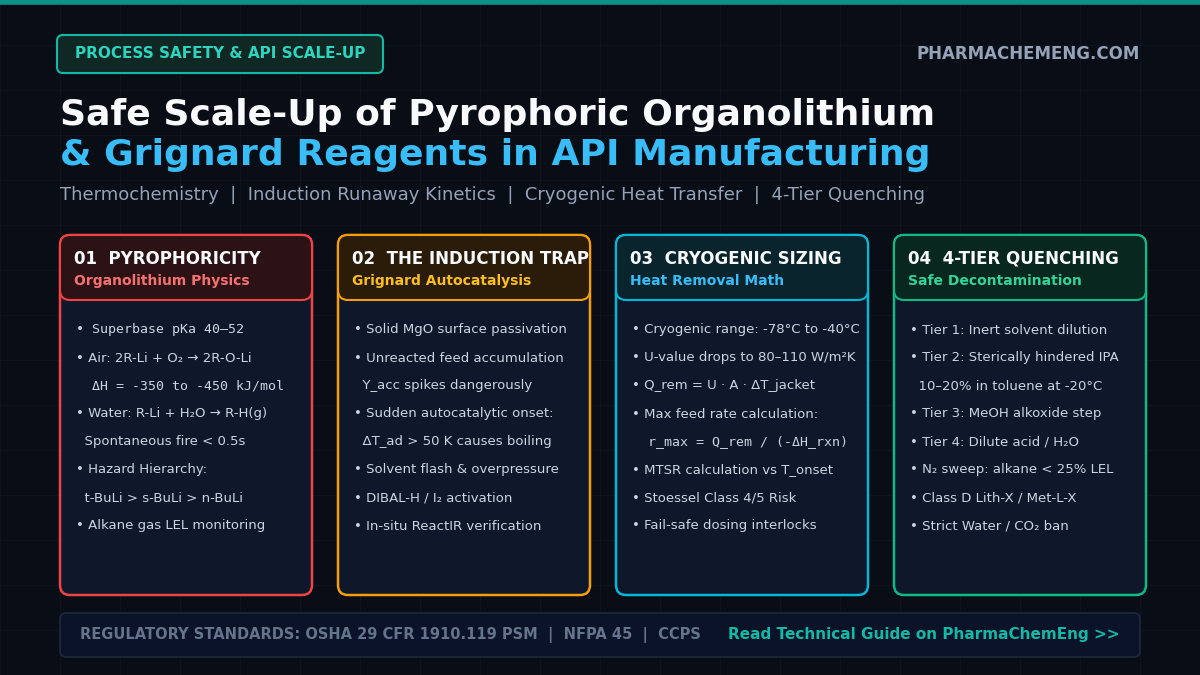

Safe Scale-Up of Pyrophoric Organolithium & Grignard Reagents
Safe Scale-Up of Pyrophoric Organolithium & Grignard Reagents

This engineering guide provides process development chemists, chemical process engineers, and EHS safety directors with an exhaustive, quantitative framework for characterizing, designing, scaling up, and safely operating organometallic reaction steps in pilot plants and commercial API manufacturing facilities.


# 1. Organolithium Reactivity & Pyrophoricity Physics

# 1.1 Superbasicity & Polar Covalent Bond Physics

Organolithium reagents are among the strongest known organic bases and nucleophiles, exhibiting conjugate acid pKa\text{p}K_a values spanning 42 to 52. The polar covalent bond between carbon (Pauling electronegativity 2.55) and lithium (Pauling electronegativity 0.98) possesses approximately 30−40%30 - 40\% ionic character:

Rδ−−Liδ+\text{R}^{\delta-}-\text{Li}^{\delta+}

This high localized electron density on the carbanionic center gives rise to instantaneous proton abstraction from any available protic source (H2O\text{H}_2\text{O}, alcohols, amines, terminal alkynes, enolizable ketones) and spontaneous addition across multiple bonds.

# 1.2 Aggregation States & Solvent Coordination Dynamics

In the condensed phase, organolithium reagents do not exist as simple isolated monomers. Due to electron deficiency on the lithium center (having only four valence electrons in classical covalent configurations), the molecules associate into stable supramolecular oligomers:

      [ Hydrocarbon Solvents: Hexane / Heptane ]
                 (n-BuLi)6 Hexamer  <--->  (t-BuLi)4 Tetramer
                               |
                        + Lewis Base (THF, TMEDA, DME)
                               v
      [ Polar Coordinating Solvents ]
                 (n-BuLi)2 Dimer    <--->  (n-BuLi · 2TMEDA) Monomer
                 (Reactivity accelerates by 10^2 to 10^4!)
  1. Non-Polar Hydrocarbon Solvents (Hexane, Heptane, Cyclohexane):

    • nn-BuLi forms hexameric prisms, [n-BuLi]6[n\text{-BuLi}]_6.
    • ss-BuLi and tt-BuLi, due to steric hindrance, form tetrahedral tetramers, [s-BuLi]4[s\text{-BuLi}]_4 and [t-BuLi]4[t\text{-BuLi}]_4.
    • These aggregates have lower nucleophilic addition rates at ambient temperatures, but retain extreme chemical potential when exposed to atmospheric oxidizers.
  2. Polar Coordinating Solvents (THF, 2-MeTHF, Diethyl Ether, TMEDA):

    • Lewis basic lone pairs donate electron density into vacant lithium 2p2p orbitals, deaggregating bulky hexamers and tetramers down to reactive dimers and solvated monomers:
16(n-BuLi)6+TMEDA⇌(n-BuLi⋅TMEDA)\frac{1}{6}(n\text{-BuLi})_6 + \text{TMEDA} \rightleftharpoons (n\text{-BuLi}\cdot\text{TMEDA})
  • Scale-Up Warning: Addition of co-solvents like Tetramethylethylenediamine (TMEDA) or switching from heptane to THF increases the deprotonation rate constant (krxnk_{rxn}) by up to four orders of magnitude, transforming a moderately controlled dosing regime into an instantaneous, heat-transfer-limited reaction.

# 1.3 Thermochemistry of Air Exposure & Flash Pyrophoricity

When organolithium solutions are released into open air, two competing, fiercely exothermic reactions occur concurrently:

  1. Oxidative Degradation:
2 R-Li+O2→2 R-O-Li(ΔHr≈−350 to −460 kJ/mol)2\,\text{R-Li} + \text{O}_2 \rightarrow 2\,\text{R-O-Li} \quad (\Delta H_r \approx -350 \text{ to } -460\text{ kJ/mol})
  1. Hydrolysis with Atmospheric Moisture:
R-Li+H2O→R-H(g)+LiOH(s)(ΔHr≈−200 to −310 kJ/mol)\text{R-Li} + \text{H}_2\text{O} \rightarrow \text{R-H}(g) + \text{LiOH}(s) \quad (\Delta H_r \approx -200 \text{ to } -310\text{ kJ/mol})

The tremendous heat liberated by these concurrent reactions (>600 kJ/mol> 600\text{ kJ/mol} combined) immediately vaporizes the volatile hydrocarbon carrier solvent (pentane, hexane, heptane) and produces hot alkane gas. Because the adiabatic local temperature exceeds the autoignition temperature (AIT) of the hydrocarbon solvent (e.g., nn-pentane AIT=260∘C\text{AIT} = 260^\circ\text{C}; nn-hexane AIT=225∘C\text{AIT} = 225^\circ\text{C}), the vapor mixture ignites spontaneously within milliseconds.

# 1.4 Comprehensive Organometallic Reagent Hazard Matrix

ReagentCommercial FormConjugate Acid pKa\text{p}K_aHydrolysis Enthalpy (ΔHhyd\Delta H_{hyd})Pyrophoric Ignition DelayEvolved Off-GasGas LEL / UEL (vol%)
nn-Butyllithium (nn-BuLi)1.6 M/2.5 M1.6\text{ M} / 2.5\text{ M} in Hexanes≈50\approx 50−240 kJ/mol-240\text{ kJ/mol}<5 s< 5\text{ s} on porous surfaces; burns vigorouslynn-Butane (C4H10\text{C}_4\text{H}_{10})1.8%/8.4%1.8\% / 8.4\%
secsec-Butyllithium (ss-BuLi)1.4 M1.4\text{ M} in Cyclohexane≈51\approx 51−265 kJ/mol-265\text{ kJ/mol}<2 s< 2\text{ s}; rapid open-air ignitionnn-Butane / Isobutane1.8%/8.4%1.8\% / 8.4\%
terttert-Butyllithium (tt-BuLi)1.7 M1.7\text{ M} in Pentane≈53\approx 53−295 kJ/mol-295\text{ kJ/mol}<0.2 s< 0.2\text{ s} (Spontaneous fireball on tip)Isobutane (C4H10\text{C}_4\text{H}_{10})1.8%/8.4%1.8\% / 8.4\%
Methyllithium (MeLi)1.6 M1.6\text{ M} in Diethyl Ether≈48\approx 48−280 kJ/mol-280\text{ kJ/mol}Highly pyrophoric; ignites ether carrierMethane (CH4\text{CH}_4)5.0%/15.0%5.0\% / 15.0\%
Phenyllithium (PhLi)1.9 M1.9\text{ M} in Dibutyl Ether≈43\approx 43−210 kJ/mol-210\text{ kJ/mol}Moisture sensitive; ignites wipes & cottonBenzene (C6H6\text{C}_6\text{H}_6)1.2%/7.8%1.2\% / 7.8\%
Methylmagnesium Chloride3.0 M3.0\text{ M} in THF≈48\approx 48−180 kJ/mol-180\text{ kJ/mol}Non-pyrophoric; violent foaming & steamMethane (CH4\text{CH}_4)5.0%/15.0%5.0\% / 15.0\%
Ethylmagnesium Bromide3.0 M3.0\text{ M} in Diethyl Ether≈50\approx 50−195 kJ/mol-195\text{ kJ/mol}Slow aerosol ignition; flashes if mistedEthane (C2H6\text{C}_2\text{H}_6)3.0%/12.4%3.0\% / 12.4\%
Phenylmagnesium Bromide2.8 M2.8\text{ M} in 2-MeTHF≈43\approx 43−165 kJ/mol-165\text{ kJ/mol}Hydrolyzes violently with boiling solventBenzene (C6H6\text{C}_6\text{H}_6)1.2%/7.8%1.2\% / 7.8\%
Lithium Diisopropylamide (LDA)2.0 M2.0\text{ M} in THF/Heptane≈36\approx 36−145 kJ/mol-145\text{ kJ/mol}Strong base; flammable vapor generationDiisopropylamine1.1%/7.1%1.1\% / 7.1\%

# 2. Grignard Initiation Hazards & The Induction Runaway Trap

# 2.1 The Solid-Liquid Single Electron Transfer (SET) Mechanism

The classical preparation of a Grignard reagent involves reacting magnesium turnings with an organic halide in an anhydrous ethereal solvent:

R-X+Mg0(s)→Anhydrous Ether / THFΔ,Inert AtmR-MgX(ΔHr=−180 to −320 kJ/mol)\text{R-X} + \text{Mg}^0(s) \xrightarrow[\text{Anhydrous Ether / THF}]{\Delta, \text{Inert Atm}} \text{R-MgX} \quad (\Delta H_r = -180 \text{ to } -320\text{ kJ/mol})

The accepted mechanistic pathway proceeds through a multistep radical pair on the metal surface:

  Mg(solid) + R-X  --->  [ Mg•+  (R-X)•- ]_surface  --->  [ Mg•+  R•  X- ]  --->  R-MgX (solution)

Because magnesium is a solid reactant, the reaction takes place strictly at the phase boundary.

+--------------------------------------------------------------------------------------------------+
|                            THE DEADLY GRIGNARD INDUCTION LOOP                                    |
+--------------------------------------------------------------------------------------------------+
|                                                                                                  |
|   1. MgO/Mg(OH)2 Passivated Turnings Charged + Solvent                                           |
|                           |                                                                      |
|                           v                                                                      |
|   2. 10% Halide Added ---> NO REACTION OBSERVED (Heat Generation = 0 kW)                         |
|                           |                                                                      |
|   [FATAL MISTAKE]         v                                                                      |
|   3. Operator continues feeding R-X  ===> ACCUMULATION FRACTION Y_acc SPIKES TO 80 - 100%        |
|                           |                                                                      |
|                           v                                                                      |
|   4. Localized Pitting Breaks Oxide Film (Tipping Point Reached)                                 |
|                           |                                                                      |
|                           v                                                                      |
|   5. AUTOCATALYTIC INITIATION CASCADE: Massive Accumulated Mass Reacts in Seconds                |
|      ΔT_ad > 80 - 150 K  ===> Instantaneous Solvent Boiling & Extreme Vapor Overpressure         |
|      Result: Rupture Disk Blows, Vapor Cloud Explosion (VCE), or Reactor Rupture                 |
+--------------------------------------------------------------------------------------------------+

# 2.2 Mathematical Modeling of Induction Accumulation (YaccY_{acc})

The mass balance for the organic halide reactant (R-X\text{R-X}) in a semi-batch Grignard reactor is:

dnRXdt=n˙feed−rreaction(T,As)⋅Vr\frac{d n_{\text{RX}}}{dt} = \dot{n}_{\text{feed}} - r_{\text{reaction}}(T, A_s) \cdot V_r

Where:

  • n˙feed\dot{n}_{\text{feed}} = Molar dosing rate of organic halide (mol/s\text{mol/s})
  • rreactionr_{\text{reaction}} = Rate of Grignard formation (mol/m3⋅s\text{mol/m}^3\cdot\text{s})
  • AsA_s = Active, unpassivated magnesium surface area (m2/m3\text{m}^2/\text{m}^3)

The unreacted accumulation fraction, YaccY_{\text{acc}}, is defined as:

Yacc(t)=nRX, unreacted(t)nRX, total added(t)=1−∫0trreactionVr dt∫0tn˙feed dtY_{\text{acc}}(t) = \frac{n_{\text{RX, unreacted}}(t)}{n_{\text{RX, total added}}(t)} = 1 - \frac{\int_0^t r_{\text{reaction}} V_r \, dt}{\int_0^t \dot{n}_{\text{feed}} \, dt}

During the induction phase, the magnesium surface is passivated by a film of MgO\text{MgO} and Mg(OH)2\text{Mg(OH)}_2. Therefore, rreaction≈0r_{\text{reaction}} \approx 0, which forces:

Yacc⟶1.0(100% Accumulation)Y_{\text{acc}} \longrightarrow 1.0 \quad (100\% \text{ Accumulation})

If the entire stoichiometric charge of R-X\text{R-X} is added during an unrecognized induction delay, the adiabatic temperature rise (ΔTad\Delta T_{\text{ad}}) upon sudden initiation is:

ΔTad=nRX, accumulated⋅(−ΔHr)Mbatch⋅Cp,batch\Delta T_{\text{ad}} = \frac{n_{\text{RX, accumulated}} \cdot (-\Delta H_r)}{M_{\text{batch}} \cdot C_{p,\text{batch}}}

For an industrial batch of 4-chlorotoluene Grignard in THF (Mbatch=2,500 kgM_{\text{batch}} = 2,500\text{ kg}, Cp=2.0 kJ/kg⋅KC_p = 2.0\text{ kJ/kg}\cdot\text{K}, ΔHr=−260 kJ/mol\Delta H_r = -260\text{ kJ/mol}, nRX=2,200 moln_{\text{RX}} = 2,200\text{ mol}):

ΔTad=2,200×2602,500×2.0=572,000 kJ5,000 kJ/K=114.4 K\Delta T_{\text{ad}} = \frac{2,200 \times 260}{2,500 \times 2.0} = \frac{572,000\text{ kJ}}{5,000\text{ kJ/K}} = 114.4\text{ K}

If initiation occurs at an initial batch temperature of 50∘C50^\circ\text{C}:

Tmax=50∘C+114.4 K=164.4∘CT_{\text{max}} = 50^\circ\text{C} + 114.4\text{ K} = 164.4^\circ\text{C}

Because THF boils at 66∘C66^\circ\text{C} at atmospheric pressure, heating the batch to 164.4∘C164.4^\circ\text{C} generates a saturated THF vapor pressure of:

Psat(164.4∘C)≈9.2 bar gauge(133 psig)P_{sat}(164.4^\circ\text{C}) \approx 9.2\text{ bar gauge} \quad (133\text{ psig})

This exceeds the standard design pressure of glass-lined steel reactors (6.0 bar6.0\text{ bar}) and catastrophic vessel rupture or blowout of rupture disks is guaranteed.

# 2.3 Activation Protocols & Real-Time PAT Verification

To eliminate the induction delay and prevent dangerous reactant accumulation, chemical plants must enforce strict activation and verification rules:

+--------------------------------------------------------------------------------------------------+
|                    MAGNESIUM ACTIVATION METHODS IN COMMERCIAL API PLANTS                         |
+--------------------------------------------------------------------------------------------------+
|  METHOD 1: DIBAL-H Chemical Depassivation (Industry Standard)                                    |
|  - Charge 1.0 - 2.0 mol% Diisobutylaluminum hydride (DIBAL-H in toluene) to Mg/solvent slurry    |
|  - DIBAL-H acts as a powerful hydride donor, stripping MgO/Mg(OH)2 films and creating hydride-   |
|    activated magnesium clusters in-situ within 5-10 minutes at 30-40°C.                          |
|                                                                                                  |
|  METHOD 2: 1,2-Dibromoethane (Sacrificial Halide)                                                |
|  - Charge 1 - 3 mol% 1,2-dibromoethane: Br-CH2-CH2-Br + Mg -> CH2=CH2(g) + MgBr2                |
|  - Generates harmless ethylene gas and etches the metal surface clean. Gas evolution provides    |
|    visual/pressure confirmation of active initiation.                                            |
|                                                                                                  |
|  METHOD 3: Iodine Crystal Etching                                                                |
|  - Charge 0.05 mol% crystalline I2: forms soluble MgI2, exposing pristine shiny metal.           |
|  - Discharge of reddish brown iodine color confirms surface activation.                          |
+--------------------------------------------------------------------------------------------------+

# The "5% Golden Rule" of Grignard Feeding:

  1. Charge solvent, magnesium turnings, and the activating agent (e.g., DIBAL-H).
  2. Charge exactly 3−5%3 - 5\% of the total organic halide quantity.
  3. STOP THE FEED PUMP.
  4. Monitor internal batch temperature (TrT_r) and jacket heat flux.
  5. Criteria for Confirmed Initiation:
    • Measurable exotherm: ΔTr≥3.0 K\Delta T_r \ge 3.0\text{ K} without changing jacket temperature.
    • Or in-situ ReactIR: Disappearance of halide C-X\text{C-X} stretch (650−750 cm−1650 - 750\text{ cm}^{-1}) and emergence of organomagnesium signature.
  6. Hard Interlock: If initiation is not verified within 15 minutes, dosing is prohibited, agitator is maintained, and root-cause troubleshooting begins. Never add more halide to an uninitiated batch!

# 3. Reaction Calorimetry (RC1) & Cryogenic Heat Transfer Mathematics

# 3.1 Semi-Batch Energy Balance in Jacketed Reactors

Semi-batch operation allows the rate of heat generation (qgenq_{\text{gen}}) to be controlled by metering the feed rate (n˙feed\dot{n}_{\text{feed}}):

qgen(t)=(−ΔHr)⋅n˙feed(t)⋅[1−Yacc(t)][kW]q_{\text{gen}}(t) = (-\Delta H_r) \cdot \dot{n}_{\text{feed}}(t) \cdot [1 - Y_{\text{acc}}(t)] \quad [\text{kW}]

Under steady, non-accumulating semi-batch dosing (Yacc≈0Y_{\text{acc}} \approx 0), the heat generation rate is directly proportional to feed speed:

qgen=(−ΔHr)⋅n˙feedq_{\text{gen}} = (-\Delta H_r) \cdot \dot{n}_{\text{feed}}

The heat removal rate from a jacketed API reactor is:

qrem(t)=U(t)⋅A(t)⋅[Tr(t)−Tj(t)][kW]q_{\text{rem}}(t) = U(t) \cdot A(t) \cdot [T_r(t) - T_j(t)] \quad [\text{kW}]

Where:

  • UU = Overall heat transfer coefficient (kW/m2⋅K\text{kW/m}^2\cdot\text{K})
  • AA = Wetted heat transfer area (m2\text{m}^2)
  • TrT_r = Batch operating temperature (K\text{K})
  • TjT_j = Cooling jacket utility temperature (K\text{K})
               FEED TANK (n-BuLi in Hexanes)
                          |
                    [Mass Flow Meter]
                          |
                   [FCV Interlocked]
                          |
                          v
         +----------------------------------+
         |   REACTION BATCH (THF, -70°C)     | <--- q_gen = (-ΔHr) * n_feed
         |                                  |
         |        [Cryogenic Jacket]        | ---> q_rem = U * A * (Tr - Tj)
         +----------------------------------+

# 3.2 The Cryogenic Heat Transfer Penalty

In organolithium chemistry (such as ortho-lithiation or asymmetric aldol additions), batch temperatures must often be maintained between −78∘C-78^\circ\text{C} and −40∘C-40^\circ\text{C} to suppress unwanted side reactions, elimination, or reagent decomposition.

Process chemists frequently assume that laboratory cooling capacity scales directly to pilot and commercial vessels. This is one of the most dangerous scale-up fallacies in pharma manufacturing.

+--------------------------------------------------------------------------------------------------+
|                   OVERALL HEAT TRANSFER COEFFICIENT (U) VS TEMPERATURE                           |
+--------------------------------------------------------------------------------------------------+
|  Operating Regime              Jacket Utility           U-Value (GLR)       U-Value (Hastelloy)  |
|  -----------------             --------------           -------------       -------------------  |
|  Steam Heating (+100°C)        Saturated Steam          350 - 450 W/m²K     500 - 650 W/m²K      |
|  Cooling Water (+25°C)         Tower Water              250 - 320 W/m²K     350 - 480 W/m²K      |
|  Brine Chilling (-15°C)        Propylene Glycol         140 - 180 W/m²K     200 - 280 W/m²K      |
|  CRYOGENIC (-70°C to -85°C)    Syltherm XLT / Dynalene  70 - 110 W/m²K      90 - 140 W/m²K       |
+--------------------------------------------------------------------------------------------------+

# Why UU-values collapse at cryogenic temperatures:

  1. Fluid Viscosity Surge: The kinematic viscosity (ν\nu) of thermal heat transfer fluids (e.g., Syltherm XLT, Therminol, or silicone oils) increases by 300−500%300 - 500\% as temperature drops from +20∘C+20^\circ\text{C} to −80∘C-80^\circ\text{C}.
  2. Laminarization of the Jacket Boundary Layer: Higher viscosity drastically lowers the jacket Reynolds number (Rej=vDhν\text{Re}_j = \frac{v D_h}{\nu}), driving flow from turbulent into transitional or laminar regimes, slashing the jacket film coefficient (hjh_j) by up to 70%70\%.
  3. Process Side Viscosity: Organic solvents like THF or toluene thicken, increasing the batch boundary film resistance (1/hr1/h_r).

# 3.3 Safe Permissible Dosing Rate Derivation

To prevent loss of temperature control, the instantaneous heat generation must never exceed the available cooling duty:

qgen≤qrem, maxq_{\text{gen}} \le q_{\text{rem, max}}
(−ΔHr)⋅n˙feed, max≤U⋅A⋅(Tr,target−Tj,min)(-\Delta H_r) \cdot \dot{n}_{\text{feed, max}} \le U \cdot A \cdot (T_{r,\text{target}} - T_{j,\text{min}})

Solving for the maximum allowable volumetric feed rate (V˙feed, max\dot{V}_{\text{feed, max}} in m3/s\text{m}^3/\text{s} or L/h\text{L/h}):

V˙feed, max=U⋅A⋅(Tr,target−Tj,min)(−ΔHr)⋅Cfeed⋅ρmolar\dot{V}_{\text{feed, max}} = \frac{U \cdot A \cdot (T_{r,\text{target}} - T_{j,\text{min}})}{(-\Delta H_r) \cdot C_{\text{feed}} \cdot \rho_{\text{molar}}}

Where CfeedC_{\text{feed}} is reagent concentration (kmol/m3\text{kmol/m}^3) and ΔHr\Delta H_r is the molar enthalpy of reaction (kJ/kmol\text{kJ/kmol}).

# 3.4 Stoessel Criticality Matrix Assessment

The Swiss process safety framework developed by Francis Stoessel classifies chemical processes based on four characteristic temperatures:

  • TpT_p = Normal process operating temperature
  • TfeedT_{\text{feed}} = Boiling temperature of the metered reactant
  • MTSRMTSR = Maximum Temperature of the Synthesis Reaction upon complete loss of cooling:
MTSR=Tp+ΔTad⋅YaccMTSR = T_p + \Delta T_{\text{ad}} \cdot Y_{\text{acc}}
  • TDT_D = Onset temperature of catastrophic secondary thermal decomposition (measured by DSC or ARC)
  • TbT_b = Atmospheric or setpoint boiling point of the reaction mixture
   TEMPERATURE SCALE:

   [ T_p: -70°C ]  ----->  [ MTSR: -20°C ]  ----->  [ T_b: +66°C (THF) ]  ----->  [ T_D: +95°C (Decomp) ]
      |                         |                        |                              |
      Normal Process       Max Temp after           Solvent Reflux/Boil            Runaway Explosion
      Cryogenic Run        Cooling Failure          Cooling Envelope               Tipping Point
Stoessel ClassCriteria ConditionSafety Implications & Engineering Controls Required
Class 1MTSR<Tp+ΔTad<TDMTSR < T_p + \Delta T_{\text{ad}} < T_D and MTSR<TbMTSR < T_bInherently safe by design. Even with 100% accumulation, decomposition cannot trigger.
Class 2MTSR<Tb<TDMTSR < T_b < T_DBoiling solvent provides evaporative evaporative tempering before decomposition can occur.
Class 3Tb<MTSR<TDT_b < MTSR < T_DOverpressurization risk due to boiling solvent vapor, but secondary explosion is avoided.
Class 4Tb<TD<MTSRT_b < T_D < MTSRHigh risk! If cooling is lost, batch exceeds decomposition onset before solvent boiling can temper.
Class 5TD<MTSRT_D < MTSREXTREME CRITICALITY. Thermal runaway to explosion is inevitable upon loss of cooling.

Organolithium Scale-Up Reality: Because organolithium decompositions (e.g., nn-BuLi deprotonating THF at >−20∘C>-20^\circ\text{C} to produce ethylene and acetaldehyde enolate in an explosive chain) have low onset temperatures (TD≈−10∘CT_D \approx -10^\circ\text{C} to +15∘C+15^\circ\text{C}), semi-batch additions frequently belong to Stoessel Criticality Class 4 or 5. Strict dosing interlocks and emergency quench loops are mandatory!


# 4. Rigorous Worked Engineering Case Study: 3,000 L Cryogenic Alkylation in Hastelloy C-22

# 4.1 Plant Scenario & Chemical Transformation

An API intermediate undergoes an ortho-directed lithiation followed by an electrophilic aldehyde addition. The reaction uses nn-butyllithium (2.5 M2.5\text{ M} in hexanes) in anhydrous THF under dry argon atmosphere.

                  Base Substrate in THF (1,800 L) at -70°C
                                   +
                    n-BuLi (2.5 M in Hexanes, 450 L)
                                   |
                                   v  (-70°C, ΔHr = -195 kJ/mol)
                   Lithio-Intermediate + n-Butane (dissolved)
+--------------------------------------------------------------------------------------------------+
|                               DESIGN SPECIFICATIONS & PROCESS DATA                               |
+--------------------------------------------------------------------------------------------------+
|  Reactor Type:                 3,000 L Hastelloy C-22 Cryogenic Reactor (DIN EN ISO 10628)       |
|  Vessel Internal Diameter (D): 1.50 m                                                            |
|  Reactor Straight Side (H):    1.80 m                                                            |
|  Initial Batch Volume (V_0):   1,800 L (THF + Substrate slurry)                                  |
|  Reagent Volume to Charge:     450 L of 2.5 M n-BuLi (1,125 moles n-BuLi)                        |
|  Final Batch Volume (V_f):     2,250 L                                                           |
|  Operating Temperature (T_p):  -70.0°C (203.15 K)                                                |
|  Max Allowable Batch Temp:     -60.0°C (213.15 K) (to prevent THF cleavage decomposition)        |
|  Thermal Fluid:                Syltherm XLT Heat Transfer Fluid                                  |
|  TCU Supply Temperature (T_j): -85.0°C (188.15 K)                                                |
|  Available ΔT_driving:         T_p - T_j = -70.0°C - (-85.0°C) = 15.0 K                          |
|  Enthalpy of Reaction (ΔH_r):  -195.0 kJ/mol n-BuLi                                              |
|  Batch Density (ρ_batch):      910 kg/m³                                                         |
|  Batch Specific Heat (C_p):    2.05 kJ/kg·K                                                      |
|  Heat Transfer Coeff (U):      95.0 W/m²·K (Cryogenic Syltherm XLT / Hastelloy C-22)             |
+--------------------------------------------------------------------------------------------------+

# 4.2 Step 1: Wetted Heat Transfer Area (AA) Calculation

For a dished-end cylindrical vessel, the effective heat transfer area increases as reagent is fed:

  1. Initial Wetted Area (A0A_0) at 1,800 L1,800\text{ L}:
    • Bottom 2:1 semi-ellipsoidal head area:
Adish≈1.08⋅D2=1.08⋅(1.50)2=2.43 m2A_{\text{dish}} \approx 1.08 \cdot D^2 = 1.08 \cdot (1.50)^2 = 2.43\text{ m}^2
  • Bottom head volume:
Vdish≈π24⋅D3=π24⋅(1.50)3=0.442 m3=442 LV_{\text{dish}} \approx \frac{\pi}{24} \cdot D^3 = \frac{\pi}{24} \cdot (1.50)^3 = 0.442\text{ m}^3 = 442\text{ L}
  • Straight side liquid height (hcyl,0h_{\text{cyl}, 0}):
Vcyl,0=1,800 L−442 L=1,358 L=1.358 m3V_{\text{cyl}, 0} = 1,800\text{ L} - 442\text{ L} = 1,358\text{ L} = 1.358\text{ m}^3
hcyl,0=Vcyl,0π4D2=1.358π4(1.50)2=1.3581.767=0.768 mh_{\text{cyl}, 0} = \frac{V_{\text{cyl}, 0}}{\frac{\pi}{4} D^2} = \frac{1.358}{\frac{\pi}{4}(1.50)^2} = \frac{1.358}{1.767} = 0.768\text{ m}
  • Cylindrical wetted area:
Acyl,0=π⋅D⋅hcyl,0=π⋅1.50⋅0.768=3.62 m2A_{\text{cyl}, 0} = \pi \cdot D \cdot h_{\text{cyl}, 0} = \pi \cdot 1.50 \cdot 0.768 = 3.62\text{ m}^2
  • Total initial area:
A0=Adish+Acyl,0=2.43+3.62=6.05 m2A_0 = A_{\text{dish}} + A_{\text{cyl}, 0} = 2.43 + 3.62 = 6.05\text{ m}^2
  1. Final Wetted Area (AfA_f) at 2,250 L2,250\text{ L}:
    • Added volume in cylinder: 450 L=0.450 m3450\text{ L} = 0.450\text{ m}^3
    • Added height: Δh=0.4501.767=0.255 m\Delta h = \frac{0.450}{1.767} = 0.255\text{ m}
    • Added area: ΔA=π⋅1.50⋅0.255=1.20 m2\Delta A = \pi \cdot 1.50 \cdot 0.255 = 1.20\text{ m}^2
    • Final area: Af=6.05+1.20=7.25 m2A_f = 6.05 + 1.20 = 7.25\text{ m}^2

To ensure conservative safety margins, all sizing must be based on the minimum wetted area:

Adesign=A0=6.05 m2A_{\text{design}} = A_0 = 6.05\text{ m}^2

# 4.3 Step 2: Maximum Cooling Heat Removal Capacity (qremq_{\text{rem}})

Using the cryogenic overall heat transfer coefficient U=95.0 W/m2⋅KU = 95.0\text{ W/m}^2\cdot\text{K}:

qrem, max=U⋅Adesign⋅(Tbatch−Tjacket)q_{\text{rem, max}} = U \cdot A_{\text{design}} \cdot (T_{\text{batch}} - T_{\text{jacket}})
qrem, max=95.0 W/m2⋅K×6.05 m2×[(−70.0)−(−85.0)] Kq_{\text{rem, max}} = 95.0\text{ W/m}^2\cdot\text{K} \times 6.05\text{ m}^2 \times [(-70.0) - (-85.0)]\text{ K}
qrem, max=95.0×6.05×15.0=8,621 W=8.62 kWq_{\text{rem, max}} = 95.0 \times 6.05 \times 15.0 = 8,621\text{ W} = \mathbf{8.62\text{ kW}}

# 4.4 Step 3: Permissible nn-BuLi Dosing Rate Calculation

Equating maximum heat generation to cooling capacity under non-accumulating steady feed (Yacc≤0.05Y_{\text{acc}} \le 0.05):

qgen, max=n˙feed, max⋅(−ΔHr)≤8.62 kWq_{\text{gen, max}} = \dot{n}_{\text{feed, max}} \cdot (-\Delta H_r) \le 8.62\text{ kW}
n˙feed, max=8.62 kJ/s195.0 kJ/mol=0.0442 mol/s=2.652 mol/min\dot{n}_{\text{feed, max}} = \frac{8.62\text{ kJ/s}}{195.0\text{ kJ/mol}} = 0.0442\text{ mol/s} = \mathbf{2.652\text{ mol/min}}

Convert molar dosing rate to volumetric flow rate of 2.5 M2.5\text{ M} nn-BuLi solution:

V˙feed, max=2.652 mol/min2.5 mol/L=1.061 L/min(63.65 L/h)\dot{V}_{\text{feed, max}} = \frac{2.652\text{ mol/min}}{2.5\text{ mol/L}} = \mathbf{1.061\text{ L/min}} \quad (63.65\text{ L/h})

Total required charge volume = 450 L450\text{ L}.
Minimum safe semi-batch addition duration (tadditiont_{\text{addition}}):

taddition, min=450 L1.061 L/min=424.1 minutes≈7.1 hourst_{\text{addition, min}} = \frac{450\text{ L}}{1.061\text{ L/min}} = \mathbf{424.1\text{ minutes}} \approx \mathbf{7.1\text{ hours}}
📌 Important
Scaling this reaction to complete in 1 or 2 hours would overwhelm the cryogenic chiller by 350%350\%, causing immediate thermal runaway above −60∘C-60^\circ\text{C} and triggering aggressive decomposition of the THF solvent.

# 4.5 Step 4: MTSR and Thermal Runaway Consequence Modeling

What happens if the cooling chiller trips 50% through the addition, with an undetected accumulation of Yacc=0.20Y_{\text{acc}} = 0.20 (20%20\% unreacted nn-BuLi in solution)?

  1. Total moles accumulated:
nacc=(0.50×1,125 moles)×0.20=112.5 molesn_{\text{acc}} = (0.50 \times 1,125\text{ moles}) \times 0.20 = 112.5\text{ moles}
  1. Instantaneous Heat Released:
Qrunaway=112.5 mol×195.0 kJ/mol=21,938 kJQ_{\text{runaway}} = 112.5\text{ mol} \times 195.0\text{ kJ/mol} = 21,938\text{ kJ}
  1. Current Batch Mass at 50% Addition:
Vbatch=1,800+225=2,025 LV_{\text{batch}} = 1,800 + 225 = 2,025\text{ L}
Mbatch=2.025 m3×910 kg/m3=1,842.8 kgM_{\text{batch}} = 2.025\text{ m}^3 \times 910\text{ kg/m}^3 = 1,842.8\text{ kg}
  1. Adiabatic Temperature Rise (ΔTad\Delta T_{\text{ad}}):
ΔTad=21,938 kJ1,842.8 kg×2.05 kJ/kg⋅K=21,9383,777.7=5.81 K\Delta T_{\text{ad}} = \frac{21,938\text{ kJ}}{1,842.8\text{ kg} \times 2.05\text{ kJ/kg}\cdot\text{K}} = \frac{21,938}{3,777.7} = \mathbf{5.81\text{ K}}
  1. Maximum Temperature of the Synthesis Reaction (MTSRMTSR):
MTSR=Tp+ΔTad=−70.0∘C+5.81 K=−64.19∘CMTSR = T_p + \Delta T_{\text{ad}} = -70.0^\circ\text{C} + 5.81\text{ K} = \mathbf{-64.19^\circ\text{C}}

Result Analysis: Because MTSR=−64.19∘C<−60.0∘CMTSR = -64.19^\circ\text{C} < -60.0^\circ\text{C} (the decomposition onset temperature), a 20% accumulation failure can be safely absorbed by the thermal inertia of the batch without crossing into catastrophic decomposition!

Catastrophic Scenario: If an operator charged the full 450 L450\text{ L} in batch mode without cooling:

ΔTad, total=1,125×1951,842.8×2.05=58.07 K\Delta T_{\text{ad, total}} = \frac{1,125 \times 195}{1,842.8 \times 2.05} = \mathbf{58.07\text{ K}}
MTSRtotal=−70.0∘C+58.07 K=−11.93∘CMTSR_{\text{total}} = -70.0^\circ\text{C} + 58.07\text{ K} = \mathbf{-11.93^\circ\text{C}}

At −11.93∘C-11.93^\circ\text{C}, nn-BuLi aggressively cleaves THF, liberating gaseous ethylene and triggering secondary exothermic decomposition (ΔHd>−350 kJ/mol\Delta H_d > -350\text{ kJ/mol}), causing a violent thermal explosion.


# 5. Closed-Loop Hardware, Piping Design & Relief Sizing

  ARGON INERTING SKID (P > 3.0 barg)
                |
                v
  +---------------------------+       MASS FLOW METER (Coriolis)
  | ORGANOLITHIUM ISO-CONTAINER| ====> [ FTI-101 ] ====> PNEUMATIC SHUTOFF [ XV-101 ]
  +---------------------------+                                 |
         | (Dip Tube)                                           v
         +===========================================> [ CRYOGENIC REACTOR R-101 ]
                                                                |
                                                 DUAL RELIEF SYSTEM [ PRV / DISK ]
                                                                |
                                                                v
                                                 [ EMERGENCY QUENCH CATCH TANK ]

# 5.1 Pressure Transfer vs Canned Motor Pumping

Direct mechanical pumping of concentrated organolithium reagents introduces severe seal failure hazards:

  • Mechanical Seal Failure: Standard elastomeric O-rings (Viton, FKM, Nitrile) embrittle and crack at cryogenic temperatures or degrade in strong hydrocarbon bases. Seal leakage releases pyrophoric liquid directly to air.
  • Recommended Transfer Mechanism: Inert Gas Pressure Displacement:
    • Use high-purity dry Argon or Nitrogen (dew point <−70∘C< -70^\circ\text{C}, O2<5 ppm\text{O}_2 < 5\text{ ppm}).
    • Pressurize the transport ISO-container or cylinder to 1.0−2.5 bar gauge1.0 - 2.5\text{ bar gauge}.
    • Liquid is displaced through a dedicated stainless steel dip tube without rotating seals.
    • If pumping is unavoidable, use sealless canned motor pumps or magnetically coupled gear pumps constructed from Hastelloy C-276 with Kalrez 6375 perfluoroelastomers.

# 5.2 Piping Specifications (ASME B31.3 Category M Fluid Service)

Piping handling organometallics must conform to ASME B31.3 Category M High Hazard Service:

  1. Material of Construction: Seamless 316L Stainless Steel (ASTM A312 TP316L) or Hastelloy C-22 for low-temperature toughness (impact tested down to −196∘C-196^\circ\text{C}).
  2. Joint Construction: 100% butt-welded piping wherever feasible. Flanged connections must be minimized and fitted with 316 SS Flange Spray Shields to prevent jet spray in case of gasket failure.
  3. Valving: Firesafe ball valves conforming to API 607 / ISO 10497 with live-loaded PTFE/Grafoil stem packing and extended bonnets for cryogenic service.
  4. Dry-Break Disconnect Couplings: Reagent feed lines must utilize dry-break couplings (e.g., TODO-MATIC or MannTek style) equipped with internal poppet valves that automatically seal both sides before disconnection, preventing droplet exposure.

# 5.3 Emergency Pressure Relief & Anti-Plugging Protection

Organometallic reactions present unique relief sizing challenges because unreacted reagents or basic byproducts (LiOH\text{LiOH}, Mg(OH)2\text{Mg(OH)}_2, magnesium alkoxides) rapidly precipitate and foul standard relief valve seats:

+--------------------------------------------------------------------------------------------------+
|                    RELIEF NOZZLE PLUGGING PREVENTION ARCHITECTURE                                |
+--------------------------------------------------------------------------------------------------+
|                                                                                                  |
|   REACTOR VAPOR HEADSPACE                                                                        |
|             |                                                                                    |
|             v                                                                                    |
|   [ CONTINUOUS ARGON BLEED PURGE ] (5 Nm³/h to keep nozzle dry & vapor-free)                     |
|             |                                                                                    |
|             v                                                                                    |
|   [ REVERSE-ACTING TEFLON RUPTURE DISK ] (Burst setpoint: 4.5 barg at -20°C)                    |
|             |                                                                                    |
|             +---> [ PRESSURE TRANSMITTER PT-102 ] (Detects pinhole leaks/disk damage)            |
|             |                                                                                    |
|             v                                                                                    |
|   [ ASME SECTION VIII SAFETY RELIEF VALVE ] (Set at 5.0 barg, balanced bellows)                  |
|             |                                                                                    |
|             v                                                                                    |
|   [ SUBMERGED VENT LINE TO QUENCH CATCH TANK WITH NITROGEN SPRAY ]                               |
+--------------------------------------------------------------------------------------------------+
  1. Rupture Disk + Safety Valve Combination: The primary safety relief valve must be protected by an upstream reverse-buckling Hastelloy rupture disk to isolate the valve seat from sticky alkoxide vapors.
  2. Continuous Purge: A dry nitrogen/argon purge sweep must be maintained between the rupture disk and relief valve seat to ensure no moisture diffuses backward from the plant vent header.

# 6. 4-Tier Industrial Quench Protocol & Hydrocarbon Flammability Mitigation

Quenching unreacted organolithium or Grignard residues is statistically the phase where most plant flash fires and thermal runaways occur. Adding water directly to a batch containing active organometallics is catastrophic.

# 6.1 The 4-Tier Controlled Quench Sequence

+--------------------------------------------------------------------------------------------------+
|                        THE 4-TIER INDUSTRIAL QUENCH HIERARCHY                                    |
+--------------------------------------------------------------------------------------------------+
|                                                                                                  |
|  [ TIER 1: THERMAL MASS DILUTION ]                                                               |
|  - Dilute batch with 20 - 30 vol% cold, dry hydrocarbon solvent (Toluene or Heptane).            |
|  - Lowers reagent molarity below 0.5 M; increases total batch heat capacity.                     |
|                                                                                                  |
|  [ TIER 2: STERICAL-HINDERED PROTIC QUENCH (ISOPROPANOL) ]                                       |
|  - Feed 10 - 20 vol% anhydrous Isopropanol (IPA) diluted in Toluene at -10°C to 0°C.             |
|  - Bulky isopropoxide formation is slow, smooth, and easily managed by reactor jacket.          |
|  - Reaction: R-Li + (CH3)2CHOH ---> R-H(g) + (CH3)2CHOLi (ΔH = -175 kJ/mol)                      |
|                                                                                                  |
|  [ TIER 3: PRIMARY ALCOHOL COMPLETE CONVERSION (METHANOL) ]                                     |
|  - Once IPA exotherm decays, feed 5 - 10 vol% Methanol at 0°C to 10°C.                           |
|  - Rapidly consumes sterically shielded organometallic residues.                                 |
|                                                                                                  |
|  [ TIER 4: AQUEOUS PHASE INVERSION & SALT DISSOLUTION ]                                          |
|  - Meter chilled 5 wt% Citric Acid, NH4Cl, or Water at +5°C to +15°C under high agitation.      |
|  - Completely hydrolyzes lithium/magnesium alkoxides into water-soluble salts.                  |
|  - Acid prevents high local alkalinity from precipitating gelatinous LiOH/Mg(OH)2 emulsions.     |
+--------------------------------------------------------------------------------------------------+

# 6.2 Off-Gas Nitrogen Sweep Sizing Calculation

During the quench of 1,125 moles1,125\text{ moles} of nn-BuLi, stoichiometric butane gas (C4H10\text{C}_4\text{H}_{10}) is evolved:

n-BuLi+ROH→n-Butane(g)↑+LiORn\text{-BuLi} + \text{ROH} \rightarrow n\text{-Butane}(g) \uparrow + \text{LiOR}

Total butane gas generated at Standard Temperature and Pressure (0∘C,1.013 bar0^\circ\text{C}, 1.013\text{ bar}):

Vbutane, STP=1,125 mol×0.022414 m3/mol=25.21 Nm3(25,210 Liters)V_{\text{butane, STP}} = 1,125\text{ mol} \times 0.022414\text{ m}^3/\text{mol} = \mathbf{25.21\text{ Nm}^3} \quad (25,210\text{ Liters})

If the Tier 2 IPA quench is dosed uniformly over 120 minutes120\text{ minutes} (7,200 s7,200\text{ s}), the average butane gas release rate is:

V˙butane=25.21 Nm37,200 s=0.00350 Nm3/s=12.60 Nm3/h\dot{V}_{\text{butane}} = \frac{25.21\text{ Nm}^3}{7,200\text{ s}} = 0.00350\text{ Nm}^3/\text{s} = \mathbf{12.60\text{ Nm}^3/\text{h}}

The Lower Explosive Limit (LEL) of nn-butane in air is 1.8 vol%1.8\text{ vol}\%.
Per NFPA 69 (Standard on Explosion Prevention Systems), the continuous inert purge rate must maintain the combustible gas concentration at or below 25%25\% of the LEL (0.25×1.8%=0.45 vol%0.25 \times 1.8\% = 0.45\text{ vol}\%):

Cbutane, vent=V˙butaneV˙butane+V˙N2≤0.0045C_{\text{butane, vent}} = \frac{\dot{V}_{\text{butane}}}{\dot{V}_{\text{butane}} + \dot{V}_{N_2}} \le 0.0045

Solving for the required Nitrogen purge flow rate (V˙N2\dot{V}_{N_2}):

V˙N2≥V˙butane⋅(1−0.00450.0045)=12.60×221.22=2,787.4 Nm3/h\dot{V}_{N_2} \ge \dot{V}_{\text{butane}} \cdot \left(\frac{1 - 0.0045}{0.0045}\right) = 12.60 \times 221.22 = \mathbf{2,787.4\text{ Nm}^3/\text{h}}
⚠️ Warning
Purging at 2,787 Nm3/h2,787\text{ Nm}^3/\text{h} directly through a batch reactor would cause massive entrainment and liquid carryover. Therefore, the quench off-gas must vent to an external knock-out drum where secondary high-volume nitrogen dilution is introduced into the ductwork prior to the plant flare or thermal oxidizer.

# 7. Emergency Response, Firefighting & Class D Agent Chemistry

# 7.1 Why Standard Fire Extinguishers Fail Catastrophically

Deploying common fire extinguishing agents on organolithium or Grignard fires causes violent physical and chemical explosions:

+--------------------------------------------------------------------------------------------------+
|                 PROHIBITED FIRE EXTINGUISHING MEDIA FOR ORGANOMETALLICS                          |
+--------------------------------------------------------------------------------------------------+
|  WATER & WATER FOAM:                                                                             |
|  - Explosive reaction: generates flammable H2 and alkane gas plus extreme heat:                   |
|    R-Li + H2O ---> R-H(g) + LiOH (ΔH = -240 kJ/mol)                                              |
|    2 Li + 2 H2O ---> 2 LiOH + H2(g) (ΔH = -445 kJ/mol)                                           |
|  - The heat instantaneously detonates the H2 and alkane vapors, projecting burning metal shrapnel|
|                                                                                                  |
|  CARBON DIOXIDE (CO2):                                                                           |
|  - Organolithiums react violently with CO2 via nucleophilic addition to form lithium carboxylates:|
|    R-Li + CO2 ---> R-COOLi (ΔH = -220 kJ/mol)                                                    |
|  - High-pressure gas jet atomizes and disperses the pyrophoric liquid across the room.           |
|                                                                                                  |
|  HALOCARBONS (HALON / FM-200 / NOVEC 1230):                                                      |
|  - Halogen-metal exchange with organolithiums creates explosive poly-lithiated intermediates.    |
+--------------------------------------------------------------------------------------------------+

# 7.2 Class D Extinguishing Chemistry: Lith-X & Met-L-X

Only certified Class D metal fire extinguishing agents are permitted in facilities handling organometallics:

   [ CLASS D LITH-X EXTINGUISHING MECHANISM ]

   Layer of Fine Graphite Flakes
   ============================================  <--- Excludes atmospheric Oxygen (O2)
   Conductive Heat Sink Layer                    <--- Absorbs high-temperature thermal energy
   ============================================
   Molten / Pyrophoric Organolithium Pool        <--- Smothers without gas dispersion turbulence
  1. Lith-X Powder (Mandatory for Lithium & Organolithiums):
    • Composition: Specially graded, dry graphite flake powder mixed with organic flow-control additives.
    • Extinguishing Mechanism: When applied gently, the graphite particles coat the burning liquid. Graphite possesses high thermal conductivity, conducting heat away from the pool below its combustion temperature while creating a dense, oxygen-impermeable smothering crust.
  2. Met-L-X Powder (For Magnesium & Grignard Spills):
    • Composition: Sodium chloride (NaCl\text{NaCl}) particles coated with a thermoplastic polymer.
    • Mechanism: The heat melts the polymer, fusing the NaCl\text{NaCl} crystals into an airtight glassy salt crust over the burning magnesium metal.

# 7.3 Personal Protective Equipment (PPE) Matrix

Protection ZoneRequired SpecificationFailure Mechanism of Inadequate Equipment
Protective Coat / OuterwearNFPA 2112 certified Flame-Resistant (FR) Nomex III A or CarbonX lab coat / coverallSynthetic lab coats (polyester, nylon) melt onto skin, causing third-degree burns.
Hand ProtectionHeavy-duty Silvershield / 4H inner liners covered by heavy aluminized leather or heavy Neoprene outer glovesThin disposable nitrile gloves dissolve instantly in hexanes and ignite when exposed to tt-BuLi.
Face & Eye ProtectionFull-face polycarbonate chemical splash shield with chin protector over ANSI Z87.1 impact gogglesSafety glasses provide no protection against upward pressurized droplet jet fires.
Emergency DrenchingEmergency safety drench showers located within <10 seconds< 10\text{ seconds} uninhibited travel distanceIn case of clothes fire, extinguish with fire blanket / drop-and-roll; do NOT spray water on open reagent pool.

# 8. Process Safety Consulting Audit Report (`DIERS-PSM-2026-OM-014`)

====================================================================================================
                        PHARMA CHEMICAL ENGINEERING PROCESS SAFETY AUDIT
                                    REPORT ID: DIERS-PSM-2026-OM-014
====================================================================================================
FACILITY:     Global API Manufacturing Facility, Block B Cryogenic Suite
UNIT OP:      3,000 L Hastelloy C-22 Reactor (R-101) Ortho-Lithiation Scale-Up
REAGENTS:     n-Butyllithium (2.5 M in Hexanes) / THF Carrier Solvent
DATE:         September 2026
STATUS:       FINAL HAZOP & COMMISSIONING AUDIT SIGN-OFF
====================================================================================================

# 8.1 10-Point Mandatory Commissioning Checklist

+----+---------------------------------------------------------------+----------+------------------+
| No | Safety Verification Parameter                                 | Status   | Engineer Sign-off|
+----+---------------------------------------------------------------+----------+------------------+
| 01 | Moisture verification in reactor & feed loop (Karl Fischer < 30 ppm)| PASS   | SK - Lead EHS    |
| 02 | Oxygen sensor interlock in reactor headspace (< 0.5 vol% O2)  | PASS     | RM - Automation  |
| 03 | Cryogenic Syltherm XLT TCU heat transfer verified (U = 95 W/m²K) | PASS   | SK - Lead EHS    |
| 04 | Mass flow Coriolis meter calibrated with automatic shutoff <0.5 s| PASS    | RM - Automation  |
| 05 | Agitator power interlock: feed trips upon power loss < 0.2 s   | PASS     | RM - Automation  |
| 06 | Emergency high-temperature trip interlock set at -60.0°C      | PASS     | RM - Automation  |
| 07 | Reverse-acting rupture disk (4.5 barg) intact with argon purge| PASS     | DL - Mechanical  |
| 08 | Emergency catch tank pre-charged with cold heptane quench mass| PASS     | DL - Mechanical  |
| 09 | Minimum 4 dedicated Class D Lith-X extinguishers staged within 5 m| PASS | SK - Lead EHS    |
| 10 | Secondary N2 dilution sweep commissioned to keep vent < 25% LEL| PASS     | SK - Lead EHS    |
+----+---------------------------------------------------------------+----------+------------------+

# 8.2 HAZOP Deviation & Consequence Analysis

GUIDE WORD:   MORE FLOW (Reagent overfeeding beyond heat removal capacity)
CAUSE:        Control valve FCV-101 failure in full open position.
CONSEQUENCE:  Batch temperature surges from -70°C to above -60°C. Secondary decomposition of THF
              cleavage begins. Pressure spike due to ethylene gas evolution.
SAFEGUARD:    Safety Instrumented System (SIS) independent high-temp transmitter TT-102 trips
              fail-close pneumatic emergency isolation valve XV-101 within 200 milliseconds.

GUIDE WORD:   NO AGITATION (Agitator drive motor mechanical shear pin trips)
CAUSE:        Bearing seizure or motor electrical fault during semi-batch dosing.
CONSEQUENCE:  Concentrated n-BuLi pools on top of static reaction surface. Unreacted reagent
              accumulates without heat transfer. When agitation restarts, massive localized
              reaction triggers immediate thermal explosion.
SAFEGUARD:    Undercurrent sensor CT-101 and shaft motion encoder interlocked to XV-101. Reagent
              feed immediately trips upon agitator speed drop below 60 RPM. Restart prohibited!

# 9. Summary Checklist & Operational Key Takeaways

  1. Verify Initiation Unconditionally: In Grignard chemistry, never dose beyond 5%5\% of total organic halide without verifying initiation by exotherm (ΔT≥3 K\Delta T \ge 3\text{ K}) or in-situ ReactIR. Unreacted accumulation (Yacc→1.0Y_{\text{acc}} \rightarrow 1.0) is a catastrophic bomb.
  2. Account for Cryogenic UU-Value Degradation: Overall heat transfer coefficients collapse to 70−110 W/m2⋅K70 - 110\text{ W/m}^2\cdot\text{K} at −70∘C-70^\circ\text{C} to −80∘C-80^\circ\text{C}. Sizing feed rates based on ambient UU-values guarantees loss of temperature control.
  3. Inert Gas Pressure Transfer Only: Eliminate mechanical rotating pump seals. Use high-purity argon or nitrogen (<5 ppm O2,H2O< 5\text{ ppm } \text{O}_2, \text{H}_2\text{O}) to transfer pyrophoric liquids via dip tubes and 100% butt-welded lines.
  4. Enforce the 4-Tier Quenching Hierarchy: Always quench unreacted organometallics hierarchically: Inert Dilution →\rightarrow Isopropanol →\rightarrow Methanol →\rightarrow Chilled Aqueous Acid. Direct water addition produces violent hydrocarbon vapor explosions.
  5. Class D Extinguishers Exclusively: Stage certified Lith-X (for lithium) and Met-L-X (for magnesium) extinguishers. Water, foam, CO2\text{CO}_2, and halogenated agents are strictly prohibited.
  6. Continuous Nitrogen Sweep Below 25% LEL: Size nitrogen dilution sweeps to ensure evolved hydrocarbon gases (butane, methane, ethane) never exceed 25%25\% of the Lower Explosive Limit in downstream vent and scrubber headers.

# References & Regulatory Standards

  • OSHA 29 CFR 1910.119: Process Safety Management of Highly Hazardous Chemicals.
  • NFPA 45: Standard on Fire Protection for Laboratories Using Chemicals.
  • NFPA 69: Standard on Explosion Prevention Systems.
  • CCPS / AIChE: Guidelines for Process Safety in Batch Reaction Systems, Center for Chemical Process Safety.
  • Stoessel, F.: Thermal Safety of Chemical Processes: Risk Assessment and Process Design, Wiley-VCH.
  • ASME B31.3: Process Piping Guide for Category M High Hazard Fluids.
  • API 520 / 521: Sizing, Selection, and Installation of Pressure-Relieving Devices in Refineries and Chemical Plants.
Process Safety & Engineering Publication Disclaimer
Terms of Service

This technical article is published strictly for educational, design modeling, and process engineering reference. Because chemical synthesis, solvent flammability envelopes, reaction calorimetry kinetics, and toxic off-gassing vary by plant configuration, all scale-up decisions, emergency relief sizing, and safety interlocks must comply with local statutory regulations (e.g., OSHA PSM 1910.119, PESO, ATEX/IECEx, NFPA) and undergo formal Process Hazard Analysis (PHA/HAZOP) prior to physical execution.

PharmaChemEng Technical Knowledgebase • www.pharmachemeng.com
Process EngineeringPharmaScale-UpProcess Safety
Comments (0)

Discussion

Please Log In to participate in the technical discussion.

No comments posted yet. Be the first to share your input!
